Click here to download Garage Light Brochure

Click here to View Video of Typical (6) Occupancy Sensor Setup

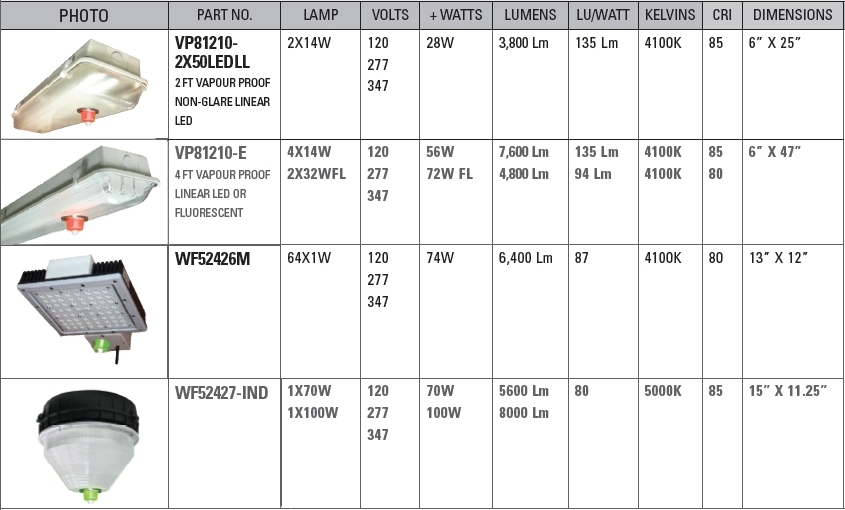

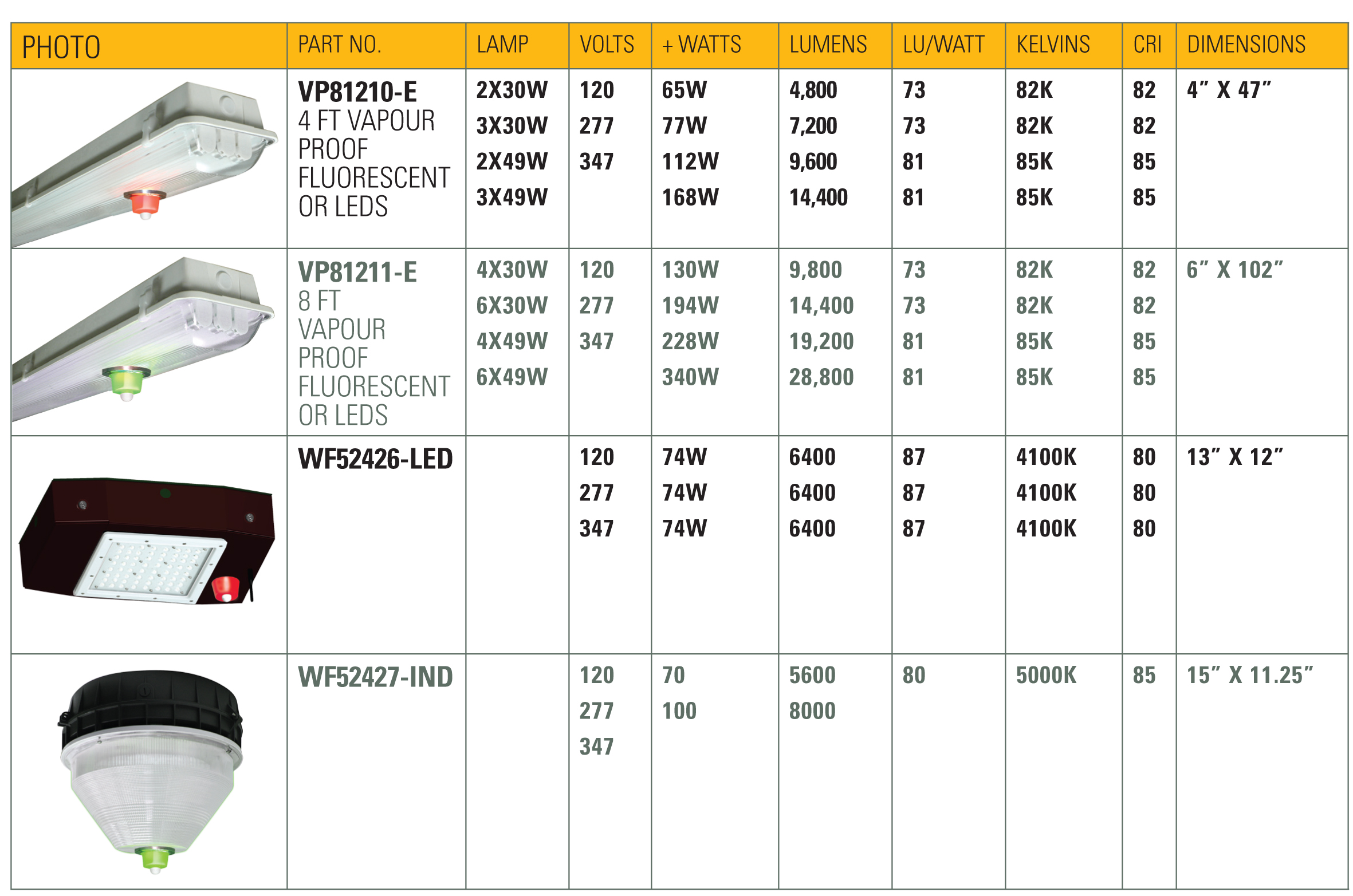

CHART OF LIGHTS

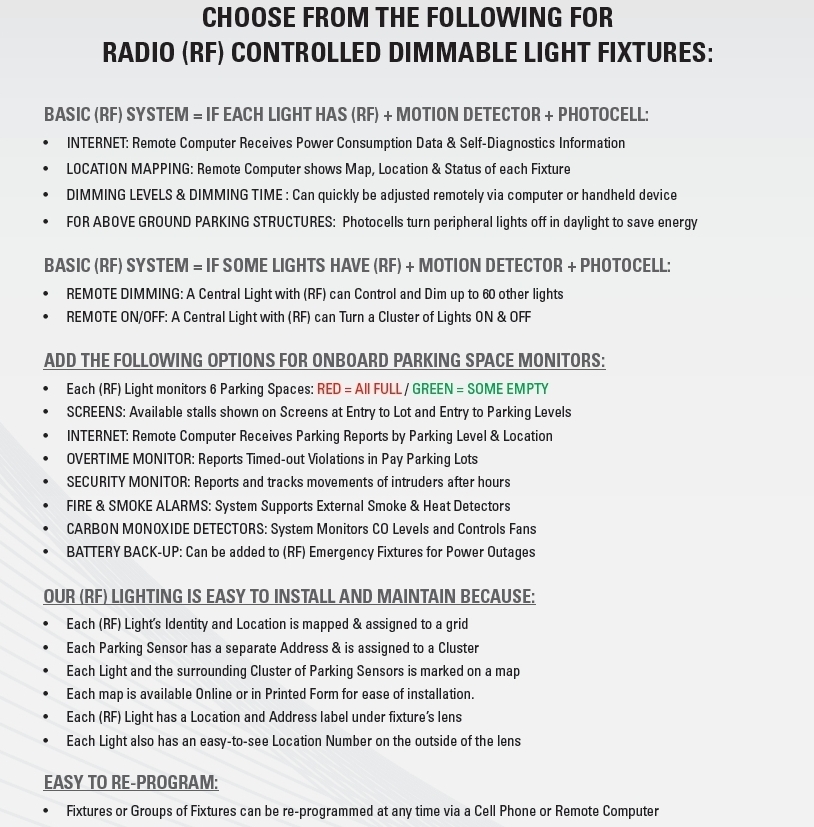

Choose from the following options for radio controlled, dimmable light fixtures:

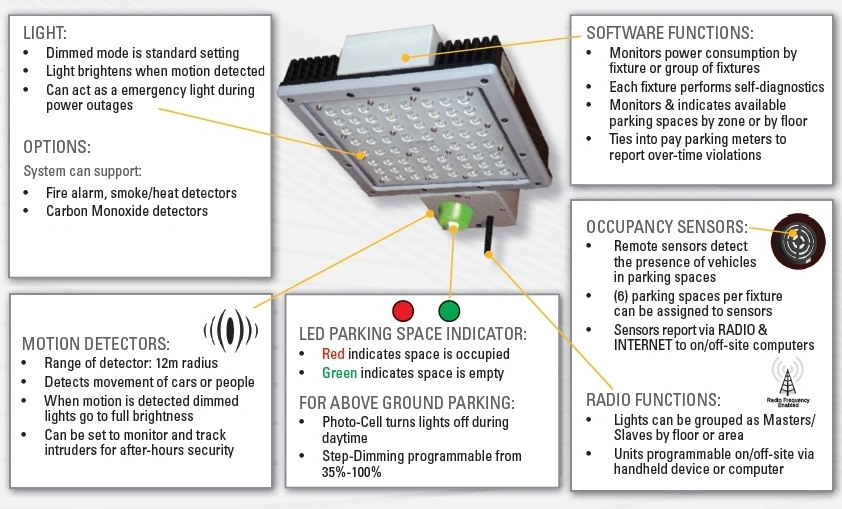

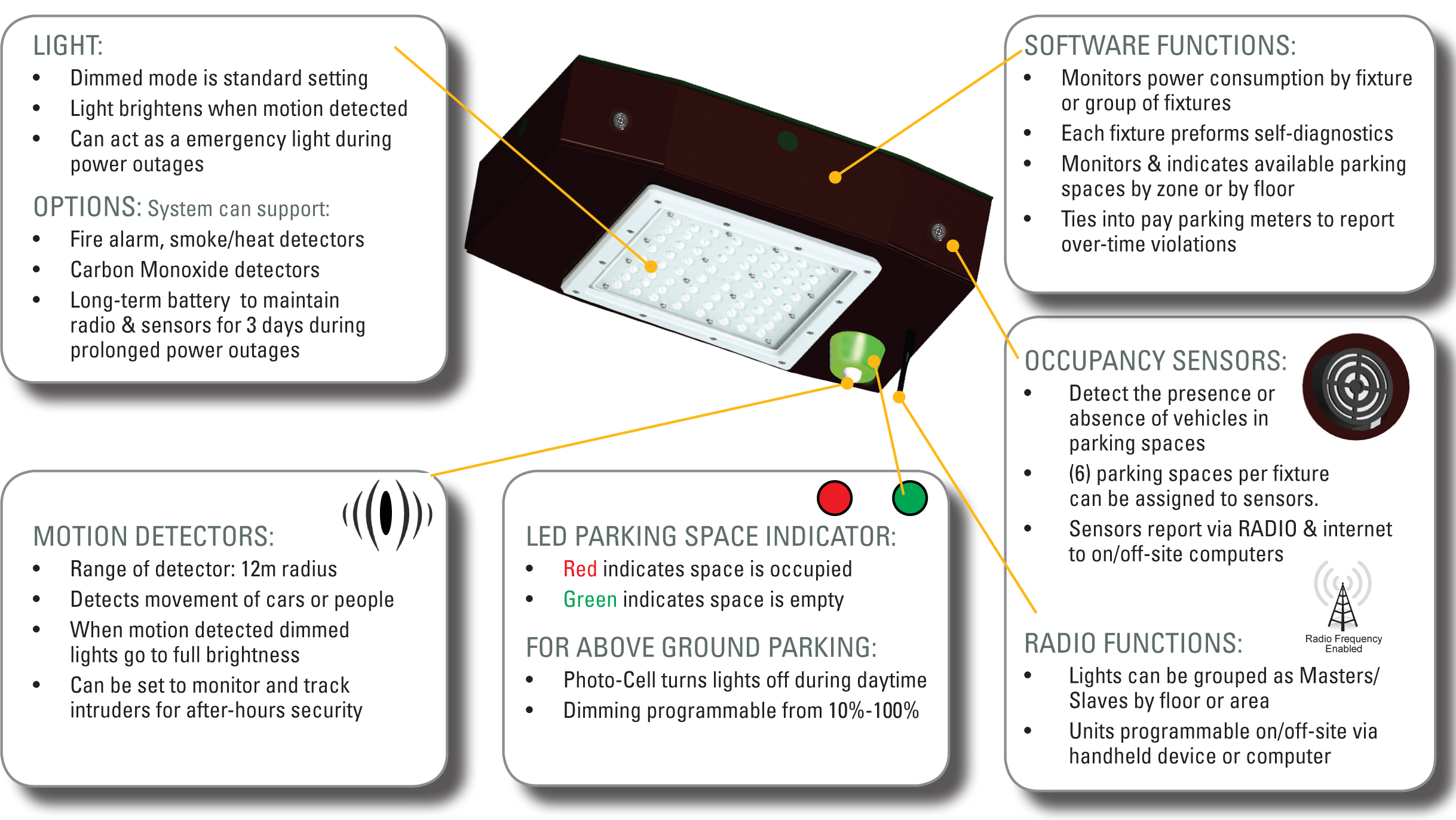

BASIC SYSTEM (supports 128 lights per group) = Light + Motion Detector + Photocell
+ INTERNET: Remote Computer Receives Power Consumption & Self-Diagnostics
+ EMERGENCY LIGHT: Add batteries for 90 Minutes Egress for Power Outages
+ LOCATION MAPPING: Remote Computer shows Map & Status of each Fixture

Add the following options for onboard parking space monitors:

BASIC PARK-KIT = Each Light monitors up to 6 Parking Spaces.
LED Indicator Lights on Fixtures: RED = ALL SPACES FULL & GREEN = EMPTY SPACES AVAILABLE
+ SCREENS: Parking Status Shows on Screens at Entry to Lot and Entry to Floors
+ INTERNET: Remote Computer Receives Parking Reports by Floor & Structure
+ OVERTIME MONITOR: Reports Violations in Timed and Pay Parking Lots
+ SECURITY MONITOR: Reports and tracks movements of intruders after hours
+ FIRE & SMOKE ALARMS: System Supports External Smoke & Heat Detectors
+ CARBON MONOXIDE DETECTORS: Monitors CO Levels and Controls Fans
+ BATTERY BACK-UP: For Radio and Detectors only during Power Outages of up to (3) days

LIGHTING AND PARK-KIT INSTALLATION AND MAINTENANCE

EASY TO INSTALL: After Lights are installed their identity and location are recorded and mapped via a hand-held device. They are then assigned to groups & grids whose dimming levels and timers are programmed to operate as a unit.

EASY TO REPROGRAM: Fixtures or Groups of Fixtures can be reprogrammed at any time via a hand-held device or a remote computer.
